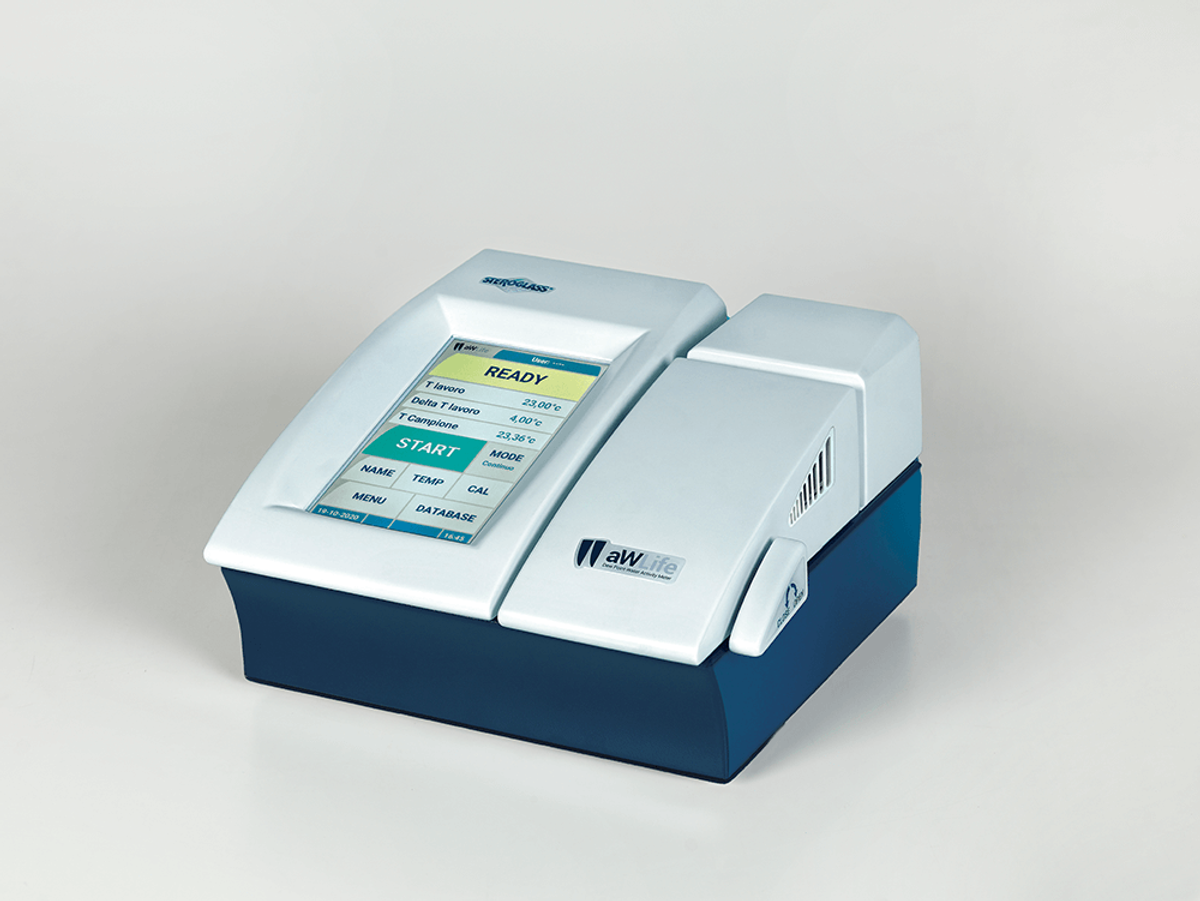

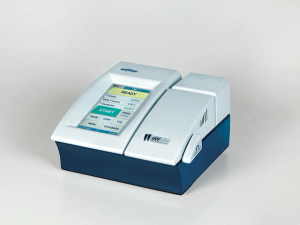

Water Activity Determination Device
The Water Activity Meter is a high-precision analytical instrument used to determine microbial growth risk and shelf life in food, pharmaceutical, and cosmetic products. It measures the availability of free water in a product, providing critical insights into product stability and safety.
Compliant with ISO 18787:2017, the device uses chilled mirror (dew point) sensor technology to directly measure true water activity values with high accuracy and repeatability.
It is widely used in quality control, R&D, and shelf-life studies, especially in food safety and product stability applications.
Measurement Range0.030 – 1.000 aw
Accuracy± 0.003 aw at +25 °C
Repeatability (standard deviation)± 0.001 aw
Calibration7-point calibration (0.150 – 0.250 – 0.500 – 0.760 – 0.920 – 0.984 – 1.000)
Measurement Time< 5 minutes
Probe SensorDew point sensor (ISO 21787:2017 compliant)
Sensor SystemFront-opening sensor block for easy sample insertion
Air CirculationIntegrated fan for headspace homogenization
Chamber DesignHigh-seal chamber with gasket ensuring minimal environmental interference
Display Resolution± 0.0001 aw (4 decimal places)
SecurityPassword-protected user and administrator access (data integrity compliant with 21 CFR Part 11)
Temperature Control+25 °C ±1 °C (adjustable range: +15 °C to +50 °C)
Operating Temperature+5 °C to +50 °C
Temperature Resolution0.01 °C
Temperature Accuracy± 0.2 °C
Temperature Uncertainty± 0.2 °C
